LED2472A 200MA | ELC
Ampermeter LED AC/DC 2mA 20mA 200mA 2A 100mV
Order No.: 24K9053
EAN: 3760244880512
MPN:
LED2472A 200MA
LED2472A200mA
Unit Price (€ / pc.)
80.92 € *
Available: 0 pcs.
Leadtime: 12 Weeks **

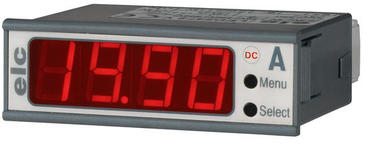

Ampermeter, LED2472A200mA, ELC
Features
- Display : 31/2 red 14 mm LED indicators
- Limit of the measure in frequency (RMS mode) : 40 to 750 Hz
- The masses of measurement input (e-) and supply are connected except in case of using optional one of two supplies.
- Appearance : Indication of the presence of an alternating voltage. Two side clips for quick mounting without tools, on a surface having between 0.8 circumferential thickness and 5 mm.
Technical specifications
| AC or DC measurement possible | AC and DC | |
| Connection | screw connection | |
| Width | 72 mm | |
| Height | 24 mm | |
| Max. current | 2 A | |
| Min. current | 2 mA | |
| Assembly | DIN rail |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 90303320 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
