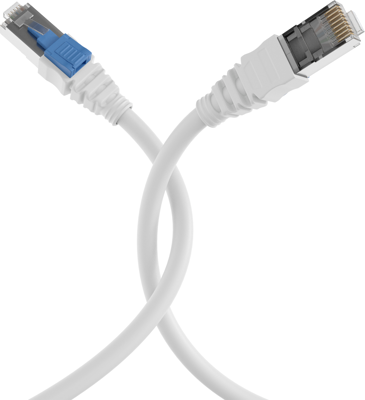

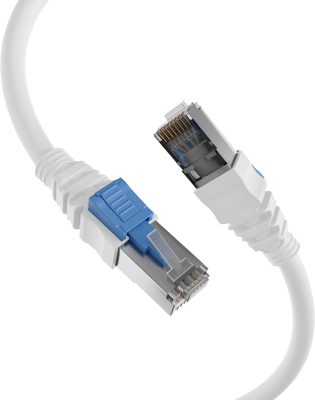

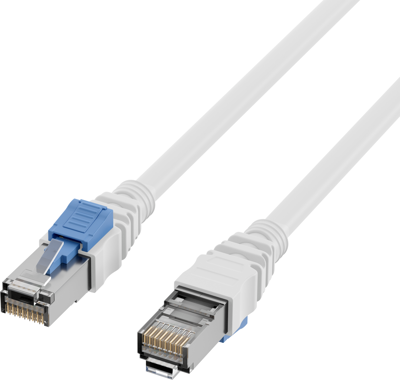

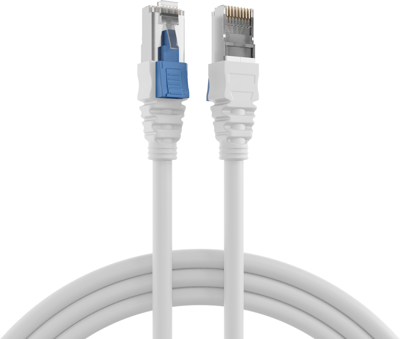

Patch cable, RJ45 plug, straight to RJ45 plug, straight, Cat 6A, S/FTP, LSZH, 1 m, white
Order No.: 25P9208
EAN: 4049759210465
MPN:
K5539WS.1
Unit Price (€ / pc.)
10.3173 € *
Available: 0 pcs.
Available in 5 Days: 98 pcs.
Leadtime: 1 Week **
Patch cable, K5539WS.1, EFB Elektronik
RJ45 patch cord S/FTP, Cat.6A, 26AWG BC, LSZH, white, lockable with two RJ45 plugs according to EN 60603-7-51, Cat.6A, with blue lock to prevent unauthorised or unintentional disconnection and lockable, sheath colour white, sheath material LSZH, Cat.7 raw cable with pure copper. The patch cables meet the valid channel requirements for 10G Base-T transmissions in a cabling link.
Technical specifications
| Connection (1) | RJ45 plug, straight | |
| Connection (2) | RJ45 plug, straight | |
| Version | patch cable | |
| AWG cross-section | AWG 26-7 | |
| Colour | white | |
| Halogen free | Yes | |
| Cable type | S/FTP | |
| Cable length | 1 m | |
| Category | Cat 6A | |
| Material | LSZH | |
| Pin configuration | 1:1 | |
| Detent lever protection available | No | |
| Degree of protection (IP) | IP20 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85444210 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
