9294303004 | ebm-papst

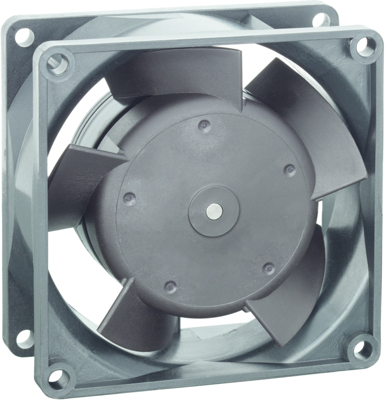

DC axial fan, 24 V, 80 x 80 x 32 mm, 52 m³/h, 35 dB, ball bearing, ebm-papst 9294303004
No longer available from manufacturer
Unit Price (€ / pc.)
34.7242 € *
Available: 41 pcs.
Total Price:
34.72 € *
Price list
Quantity
Price per unit*
1 pcs.
34.7242 €
10 pcs.
33.6889 €
25 pcs.
32.2490 €
50 pcs.
30.9281 €
*incl. VAT plus shipping costs
Subject to prior sale
DC Axial fan, 8314, EBM-PAPST
The axial fan 8314 is suitable for high air flow rates at medium pressure build-up. The air is moved through the fan blades parallel to the rotational axis. Compact, quiet and highly efficient, the energy-saving fan adapt to cooling needs and can be intelligently networked with the device logic.
Features
- Cable connection is with single strands AWG 22 and is stripped and tinned
- Electronic commutation completely integrated
- Direction of rotation right, viewed on the rotor
- Protected against reverse polarity and blocking
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | DC axial fan | |
| Rated voltage | 24 V | |
| Width | 80 mm | |
| Height | 80 mm | |
| Depth | 32 mm | |
| Volume flow | 52 m³/h | |
| Sound pressure level | 35 db | |
| speed | 3300 1/min | |
| Type of bearing | ball bearing | |
| Power consumption | 2 W |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | HU |
| Customs tariff number | 84145925 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
