8314 H | ebm-papst

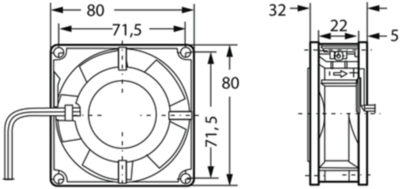

DC axial fan, 24 V, 80 x 80 x 32 mm, 80 m³/h, 48 dB, ball bearing, ebm-papst 8314 H
Unit Price (€ / pc.)
59.9522 € *
Available: 266 pcs.
Total Price:
59.95 € *
Price list
Quantity
Price per unit*
1 pcs.
59.9522 €
5 pcs.
56.3584 €
15 pcs.
54.1926 €
50 pcs.
51.8007 €
150 pcs.
49.6349 €
*incl. VAT plus shipping costs
Subject to prior sale
DC Axial fan, 8314 H, EBM-PAPST
The 8314 H is a brushless DC axial fan that is made for applications that require high performance cooling and protection from harsh weather conditions in outdoor and extreme environments.
Features
- Cable connection is with single strands AWG 22 and is stripped and tinned
- Electronic commutation completely integrated
- Direction of rotation right, viewed on the rotor
- Protected against reverse polarity and blocking
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | DC axial fan | |
| Rated voltage | 24 V | |
| Width | 80 mm | |
| Height | 80 mm | |
| Depth | 32 mm | |
| Volume flow | 80 m³/h | |
| Sound pressure level | 48 db | |
| speed | 5000 1/min | |
| Type of bearing | ball bearing | |
| Power consumption | 6 W |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84145925 |
| Country of origin | HU |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
