5606 S | ebm-papst

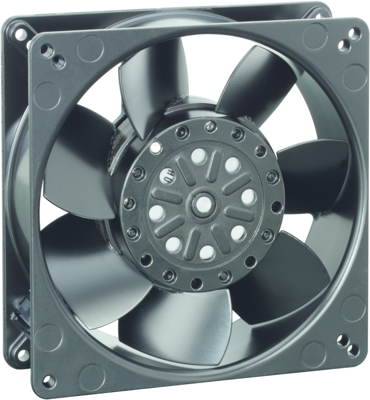

AC axial fan, 115 V, 135 x 135 x 38 mm, 270 m³/h, 50 dB, Ball bearing, ebm-papst, 5606 S

Order No.:  90B1191
MPN:
5606 S
9245012002
Series:  5600
EAN: 4099889480870
ebm-papst
default L
front L
default S
front S
Images may differ

Key Specification:

Version AC axial fan
Rated voltage 115 V
Width 135 mm
Height 135 mm
Depth 38 mm
Show 2 variants
Technical specifications Download Datasheet
Unit Price (€ / pc.)
72.9589 € *
Available: 49 pcs.
Leadtime: 6 Weeks **
Total Price:
72.96 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
72.9589 €
Add to comparison list Print
Description
Technical specifications
Download
Logistics
Compliance
Accessory
Variations
Description

AC Axial fan, 5606 S, EBM-PAPST

The 5606 S AC axial fan is a type of fan that blow air along the axis of the fan-that is, the fancurved blades force air to move in parallel with the shaft on which the blades rotate. This fan can produce variable airflow and create higher flow rates than centrifugal fan.

Features

  • Cable connection with 2 flat plugs 2.8 x 0.5 mm
  • Protected against overload by thermal switch
  • Direction of rotation left, viewed on the rotor
  • Material housing: metal
Technical specifications
Version AC axial fan
Width 135 mm
speed 3100 1/s
Height 135 mm
Type of bearing Ball bearing
Power consumption 26 W
Rated voltage 115 V
Sound pressure level 50 db
Depth 38 mm
Volume flow 270 m³/h
Show similar products (0)
Logistics
Country of origin HU
Customs tariff number 84145925
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
Accessory

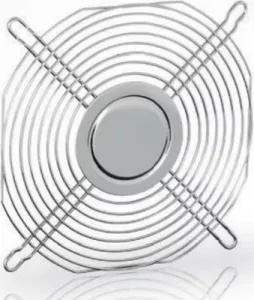

Protective grille, LZ, Protective metal grille, 135 mm
Image may differ

Protective grille, LZ, Protective metal grille, 135 mm

Order No.:

 90B1523

Manufacturer SKU:

 LZ 25



Available: 33 pcs.
Next delivery: 50 pcs. on 2024-01-18
Leadtime: 15 Weeks **
13.59 € per pc. *
Add to comparison list
*incl. VAT plus shipping costs
1 pcs.
13.5898 €
10 pcs.
11.9595 €
50 pcs.
11.1384 €
150 pcs.
10.6505 €
500 pcs.
10.1150 €
