4656 ZW | ebm-papst
AC axial fan, 230 V, 119 x 119 x 38 mm, 180 m³/h, 37 dB, ball bearing, ebm-papst 4656 ZW
Unit Price (€ / pc.)
80.1346 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
80.13 € *
Price list
Quantity
Price per unit*
1 pcs.
80.1346 €
5 pcs.
75.3270 €
*incl. VAT plus shipping costs
**Subject to prior sale

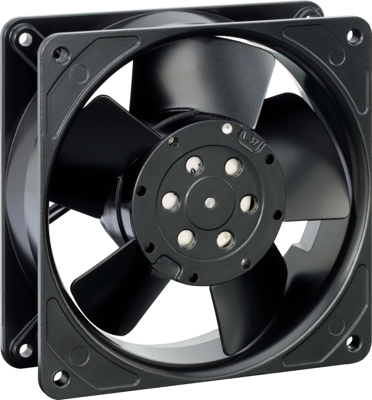

AC Axial fan, 4656 ZW, EBM-PAPST
The 4656 ZW is a brushless DC axial fan that is made for applications that require high performance cooling and protection from harsh weather conditions in outdoor and extreme environments.
Features
- Direction of rotation is clockwise while viewed towards the rotor
- Airflow direction air outlet over struts
- Max. torque when mounted across both mounting wire outlet corner is 120 Ncm
- Insulation diameter 2,06 mm
Technical specifications
| Version | AC axial fan | |
| Rated voltage | 230 V | |
| Width | 119 mm | |
| Height | 119 mm | |
| Depth | 38 mm | |
| Volume flow | 180 m³/h | |
| Sound pressure level | 37 db | |
| speed | 2650 1/min | |
| Type of bearing | ball bearing | |
| Power consumption | 19 W |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 84145925 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
