4412 N | ebm-papst

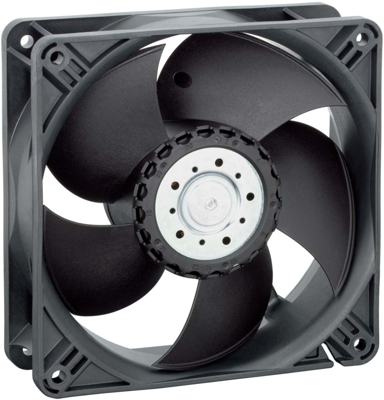

DC axial fan, 12 V, 119 x 119 x 38 mm, 205 m³/h, 46 dB, ball bearing, ebm-papst 4412 N
Unit Price (€ / pc.)
36.4735 € *
Available: 0 pcs.
Leadtime: 8 Weeks **
DC Axial fan, 4412 N, EBM-PAPST
The 4412 N is a brushless DC axial fan that is made for applications that require high performance cooling and protection from harsh weather conditions in outdoor and extreme environments.
Features
- Housing GRP1
- Direction of rotation right, viewed on the rotor
- Connection via single strands AWG 24, TR 64
- Moisture protection
Technical specifications
| Version | DC axial fan | |
| Rated voltage | 12 V | |
| Width | 119 mm | |
| Height | 119 mm | |
| Depth | 38 mm | |
| Volume flow | 205 m³/h | |
| Sound pressure level | 46 db | |
| speed | 3650 1/min | |
| Type of bearing | ball bearing | |
| Power consumption | 5 W |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 84145925 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
