4184 NXH | ebm-papst

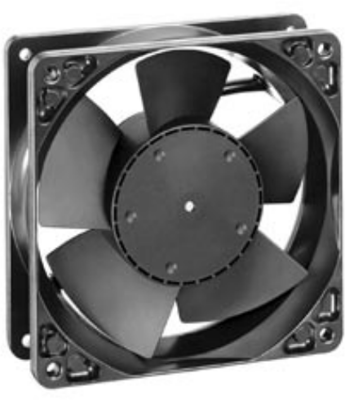

DC axial fan, 24 V, 119 x 119 x 38 mm, 237 m³/h, 59 dB, ball bearing, ebm-papst 4184 NXH
Unit Price (€ / pc.)
50.4560 € *
Available: 0 pcs.
Next delivery: 50 pcs. on 2025-06-12
Leadtime: 7 Weeks **
Total Price:
50.46 € *
Price list
Quantity
Price per unit*
1 pcs.
50.4560 €
10 pcs.
46.9217 €
*incl. VAT plus shipping costs
**Subject to prior sale
DC Axial fan, 9294310138, EBM-PAPST
The 9294310138 axial AC fan is a type of fan that blow air along the axis of the fan-that is, the fancurved blades force air to move in parallel with the shaft on which the blades rotate. This fan can produce variable airflow and create higher flow rates than centrifugal fan.
Features
- The connection cable has 2 flat plugs with 2.8 x 0.5 mm
- Low operating noise at high back pressure
- Electronic commutation completely integrated
- Protected against polarity reversal and blocking

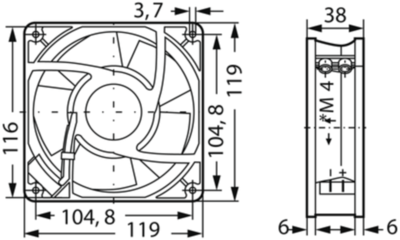

Technical specifications
| Version | DC-Axiallüfter | |
| Rated voltage | 24 V | |
| Width | 119 mm | |
| Height | 119 mm | |
| Depth | 38 mm | |
| Volume flow | 237 m³/h | |
| Sound pressure level | 59 db | |
| speed | 4400 1/min | |
| Type of bearing | Kugellager | |
| Power consumption | 11 W |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 84145925 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
