48432 64002 | EBE

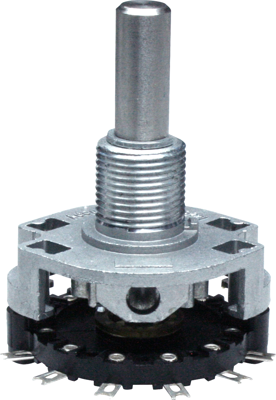

Step rotary switches, 2 pole, 5 stage, 60°, interrupting, 500 mA, 200 V, 48432 64002
Unit Price (€ / pc.)
33.6294 € *
Available: 8 pcs.
Total Price:
33.63 € *
Price list
Quantity
Price per unit*
1 pcs.
33.6294 €
5 pcs.
32.0348 €
10 pcs.
30.1189 €
25 pcs.
28.4291 €
50 pcs.
26.4537 €
*incl. VAT plus shipping costs
Subject to prior sale
Multistep rotary switches, type EBE SM 25.
For demanding applications, vibration resistant, low mounting depth; Switching action: break before make. Switching voltage: max. 200 VAC. Switching current: max. 500 mA. Breaking capacity: max. 6.0 VA/W. Test voltage: 750 V/50 Hz. With silver-plated contacts, contact banks on Noryl, open version for wiring.
Type: 2 x 5 contacts, 1 contact bank
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 2 pole | |
| Connection | solder connection | |
| switching current | 500 mA | |
| Switching Mode | interrupting | |
| Number of steps | 5 | |
| Breaking capacity | 6 VA | |
| Rated voltage | 200 V | |
| Switching angle | 60 ° | |
| Product type | step rotary switches |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365015 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
