082882 | EATON
Auxiliary switch, 1 A, 250 VDC, 1 Form A (N/O) + 1 Form B (N/C), screw connection, 082882
Order No.: 82P0698
EAN: 4015080828822
MPN:
082882
NHI-E-11-PKZ0
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
16.5529 € *
Available: 5 pcs.
Total Price:
16.55 € *
Price list
Quantity
Price per unit*
1 pcs.
16.5529 €
3 pcs.
15.7199 €
5 pcs.
14.9940 €
10 pcs.
14.1134 €
*incl. VAT plus shipping costs
Subject to prior sale

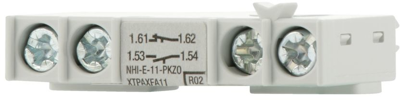

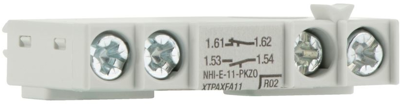

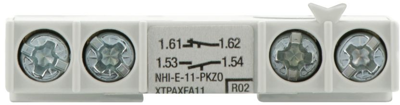

Auxiliary contact, 082882, EATON
The standard auxiliary contact, designated as NHI-E, features one normally open (N/O) and one normally closed (N/C) configuration. It can be installed at the front and is equipped with screw terminals.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | auxiliary switch | |
| Latching switching function | 1 Form A (N/O) + 1 Form B (N/C) | |
| Rated current | 1 A | |
| Rated Voltage | 250 VDC | |
| rated voltage (AC) | 440 V | |
| Connection | screw connection | |
| Assembly | front mounting |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
