1170-21-4A | E-T-A
Automotive circuit breaker, 4 A, 48 V, black, (L x W x H) 22 x 9.8 x 38 mm, 1170-21-4A
Unit Price (€ / pc.)
17.1598 € *
Standard delivery time from the manufacturer is: 4 Weeks

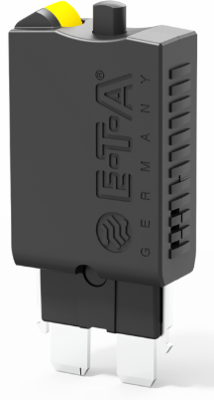

Automotive thermal circuit breaker, 1170-21-4A, E-T-A
The 1170-21-4A is a compact single pole thermal circuit breaker with push-to-reset, tease free, trip free, snap action mechanism and separate (colour coded) manual release. This product combines full feature circuit breaker protection and convenience with low cost of ownership benefits. Equipped with blade terminals for plug-in mounting and latching hooks to fit flat fuse holders.
Applications
- Extra low voltage wiring systems on all types of vehicles and marine craft

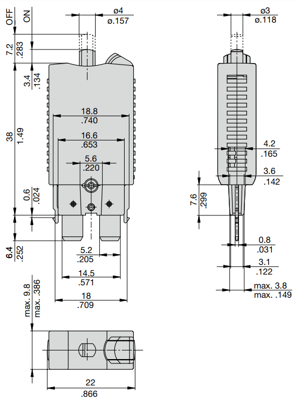

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Length | 22 mm | |
| Rated current | 4 A | |
| Height | 38 mm | |
| Colour | black | |
| Width | 9.8 mm | |
| Rated voltage | 48 V | |
| Version | automotive circuit breaker |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85362010 |
| Country of origin | ID |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
