1170-21-25A | E-T-A
Automotive circuit breaker, 25 A, 48 V, black, (L x W x H) 22 x 9.8 x 38 mm, 1170-21-25A
Unit Price (€ / pc.)
17.1598 € *
Available: 0 pcs.
Leadtime: 4 Weeks **

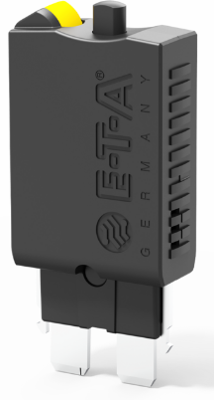

Automotive thermal circuit breaker, 1170-21-25A, E-T-A
The 1170-21-25A is a compact single pole thermal circuit breaker with push-to-reset, tease free, trip free, snap action mechanism and separate (colour coded) manual release. This product combines full feature circuit breaker protection and convenience with low cost of ownership benefits. Equipped with blade terminals for plug-in mounting and latching hooks to fit flat fuse holders.
Applications
- Extra low voltage wiring systems on all types of vehicles and marine craft
Technical specifications
| Version | automotive circuit breaker | |
| Width | 9.8 mm | |
| Colour | black | |
| Height | 38 mm | |
| Length | 22 mm | |
| Rated voltage | 48 V | |
| Rated current | 25 A |
Download
Logistics
| Country of origin | ID |
| Customs tariff number | 85362010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
