1160-02-15A | E-T-A

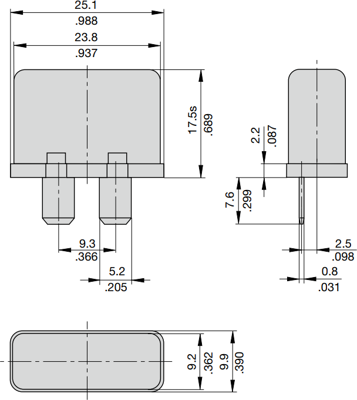

Automotive circuit breaker, 15 A, 12 V, silver, (L x W x H) 25.1 x 9.9 x 17.5 mm, 1160-02-15A
Unit Price (€ / pc.)
9.2701 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Automotive thermal circuit breaker, 1160-02-15A, E-T-A
The 1160-02-15A is a thermal circuit breaker, with controlled self-resetting mechanism, specially suited to installation in inaccessible locations. Under overload conditions the circuit breaker contact will open to protect the load circuit. This product's low current excitation circuit ensures that the contacts remain open thereby avoiding the hazards of automatic reset operation. The circuit breaker is reset by switching off the supply circuit for a short period.
Applications
- Automotive and marine extra low voltage wiring system and component
- Battery powered appliances
Technical specifications
| Version | automotive circuit breaker | |
| Width | 9.9 mm | |
| Colour | silver | |
| Height | 17.5 mm | |
| Length | 25.1 mm | |
| Rated voltage | 12 V | |
| Rated current | 15 A |
Download
Logistics
| Country of origin | ID |
| Customs tariff number | 85362010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
