1160-02-12A | E-T-A

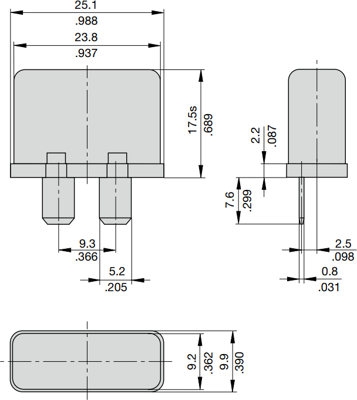

Automotive circuit breaker, 12 A, 12 V, silver, (L x W x H) 25.1 x 9.9 x 17.5 mm, 1160-02-12A
Unit Price (€ / pc.)
9.2701 € *
Standard delivery time from the manufacturer is: 4 Weeks
Automotive thermal circuit breaker, 1160-02-12A, E-T-A
The 1160-02-12A is a thermal circuit breaker, with controlled self-resetting mechanism, specially suited to installation in inaccessible locations. Under overload conditions the circuit breaker contact will open to protect the load circuit. This product's low current excitation circuit ensures that the contacts remain open thereby avoiding the hazards of automatic reset operation. The circuit breaker is reset by switching off the supply circuit for a short period.
Applications
- Automotive and marine extra low voltage wiring system and component
- Battery powered appliances
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | silver | |
| Rated current | 12 A | |
| Width | 9.9 mm | |
| Height | 17.5 mm | |
| Length | 25.1 mm | |
| Version | automotive circuit breaker | |
| Rated voltage | 12 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | ID |
| Customs tariff number | 85362010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
