EA TFT052-41ANN | DISPLAY VISIONS

TFT display, 5.2"/13.2 cm, 480 x 128, EA TFT052-41ANN

Order No.: 73S2385
MPN:
EA TFT052-41ANN
EA TFT052-41ANN DISPLAY VISIONS TFT Displays

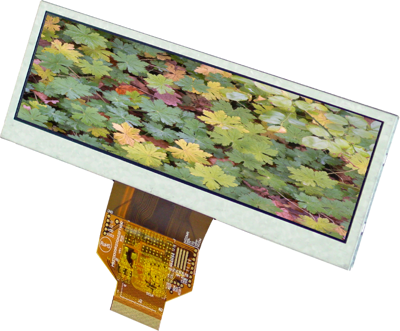

Image may differ
Unit Price (€ / pc.)
107.10 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
107.10 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
107.10 €

TFT display, EA TFT052-41ANN, DISPLAY VISIONS

5.2" TFT display with 24-bit RGB interface. Long-term available for industrial applications. Pin assignment is compatible with the most members of EA TFT series. The wide operating temperature range is -20..+70°C. White LED backlight integrated.

Technical specifications
Shell size 140.4 x 49.9 x 3 mm
Product type TFT display
max. operating temperature 70 °C
screen diagonal 5.2"/13.2 cm
Resolution 480 x 128
Viewing range (height) 39.4 mm
Viewing area (width) 133.4 mm
min. operating temperature -20 °C
Logistics
Country of origin CN
Customs tariff number 85312095
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
