EA TFT050-84BTS | DISPLAY VISIONS

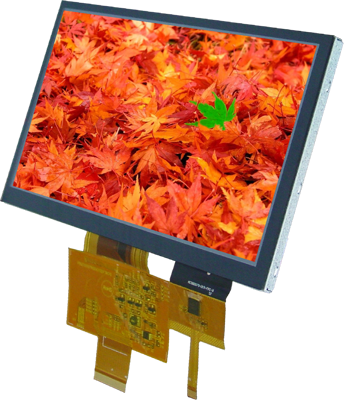

TFT display, 5"/12.7 cm, with touch function, 800 x 480, EA TFT050-84BTS
Order No.: 73S2384
MPN:
EA TFT050-84BTS
Unit Price (€ / pc.)
102.1734 € *
Standard delivery time from the manufacturer is: 1 Week
TFT display, EA TFT050-84BTS, DISPLAY VISIONS
EA TFT050-84BTS is a TN transmissive type color active matrix TFT liquid crystal display that use amorphous silicon TFT as switching devices. This module is a composed of a TFT_LCD module, It is usually designed for industrial application and this module follows RoHS. Touchpanel controller ILI2130 is included.
Technical specifications
| Product type | TFT display | |
| Version | with touch function | |
| Resolution | 800 x 480 | |
| screen diagonal | 5"/12.7 cm | |
| Viewing range (height) | 64.8 mm | |
| Viewing area (width) | 108 mm | |
| Technology | TFT - transmissive | |
| Shell size | 120.7 x 75.8 x 4.475 mm | |
| min. operating temperature | -30 °C | |
| max. operating temperature | 80 °C |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85312095 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
