EA TFT050-84ATP | DISPLAY VISIONS

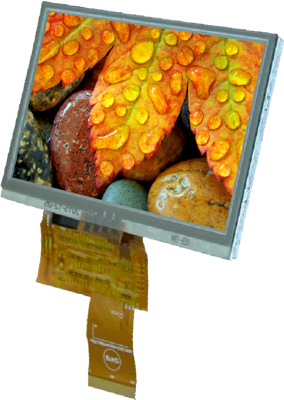

TFT display, 5"/12.7 cm, with touch function, 800 x 480, EA TFT050-84ATP

Order No.: 73S2383
MPN:
EA TFT050-84ATP
EA TFT050-84ATP DISPLAY VISIONS TFT Displays
Image may differ
Unit Price (€ / pc.)
98.175 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
98.18 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
98.175 €

TFT display, EA TFT050-84ATP, DISPLAY VISIONS

5" TFT display with 24-bit RGB interface. Long-term available for industrial applications. Pin assignment is compatible with the most members of EA TFT series. The wide operating temperature range is -20..+70°C. White LED backlight integrated. Incl. resistive touch panel (4-wire). Perfect for data input.

Technical specifications
Product type TFT display
min. operating temperature -20 °C
Viewing range (height) 67 mm
Resolution 800 x 480
screen diagonal 5"/12.7 cm
Viewing area (width) 110.7 mm
max. operating temperature 70 °C
Version with touch function
Shell size 120.7 x 75.8 x 4.3 mm
Logistics
Country of origin CN
Customs tariff number 85312095
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
