EA W128128-XRLW | DISPLAY VISIONS

Round OLED, 1.2'', whiteAH

Order No.: 73S2408
MPN:
EA W128128-XRLW

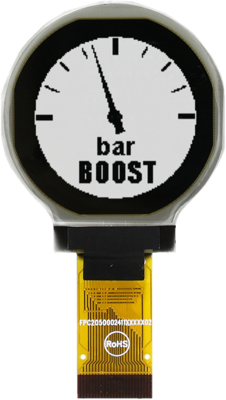

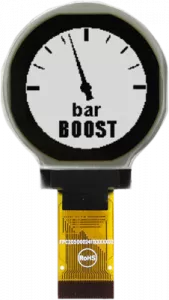

EA W128128-XRLW DISPLAY VISIONS OLED Displays Image 1

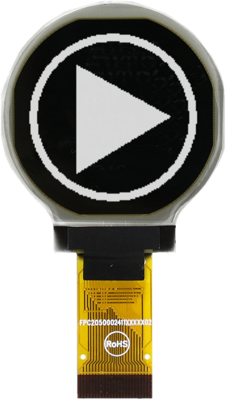

EA W128128-XRLW DISPLAY VISIONS OLED Displays Image 2

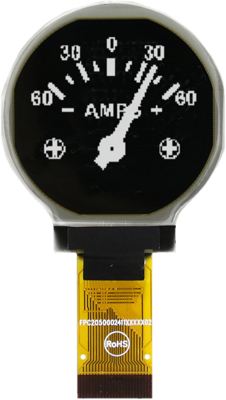

EA W128128-XRLW DISPLAY VISIONS OLED Displays Image 3
Image may differ
Unit Price (€ / pc.)
37.1637 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
37.16 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
37.1637 €

Round OLED, EA W128128-XRLW, DISPLAY VISIONS

Round OLED in white with diameter 30 mm (active area). Extreme wide temperature range and fast response time (typ. 10µs even at -40°C). The display provides a wide viewing angle with nearly 180°. Connection is easyly done via integrated 24-pin flex cable. As an Interface the display provides SPI, I²C and parallel 8-bit.

Technical specifications
Filter Property Value
type of backlight OLED
Viewing area (width) 36 mm
min. operating temperature -40 °C
Display 128 x 128 character
Background color white
Thickness 2.1 mm
max. operating temperature 80 °C
Viewing range (height) 36 mm
Width 36.9 mm
IC controller/driver SSD1327 compatible
Height 41.2 mm
Technology OLED
MPU interface 8-Bit, I²C, SPI
Logistics
Property Value
Country of origin TW
Customs tariff number 85312095
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
