EA W096016-XBLW | DISPLAY VISIONS
OLED display, 96 x 16 dots, white, DISPLAY VISIONS EA W096016-XBLW
Order No.: 73S2403
MPN:
EA W096016-XBLW
Unit Price (€ / pc.)
7.5684 € *
Standard delivery time from the manufacturer is: 1 Week

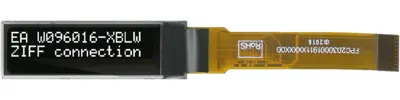

Graphic OLED, EA W096016-XBLW, DISPLAY VISIONS
Nano Graphic OLED in white with 96x16 dots. FPC/ZIFF connection. Extreme wide temperature range and fast response time (typ. 10µs even at -40°C). The display provides a wide viewing angle with nearly 180°. As an interface the display provides SPI (3- and 4-wire) and I²C bus.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Display | 96 x 16 dots | |
| Viewing area (width) | 23.1 mm | |
| Viewing range (height) | 5.5 mm | |
| Technology | OLED | |
| max. operating temperature | 80 °C | |
| Height | 9.2 mm | |
| type of backlight | OLED | |
| IC controller/driver | SSD1306 compatible | |
| Width | 29.1 mm | |
| min. operating temperature | -40 °C | |
| Background color | white | |
| Thickness | 1.45 mm | |
| MPU interface | I²C, SPI |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85312095 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
