EA W096016-XALW | DISPLAY VISIONS
Graphic OLED 96x16, whiteAH
Order No.: 73S2402
MPN:
EA W096016-XALW
Unit Price (€ / pc.)
8.2586 € *
Available: 0 pcs.
Leadtime: 1 Week **

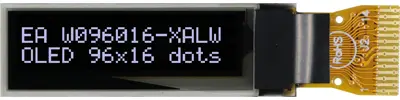

Graphic OLED, EA W096016-XALW, DISPLAY VISIONS
Nano Graphic OLED in white with 96x16 dots. Extreme wide temperature range and fast response time (typ. 10µs even at -40°C). The display provides a wide viewing angle with nearly 180°. Connection is easyly done via hot bar. As an Interface the display provides an I²C bus.
Technical specifications
| min. operating temperature | -40 °C | |
| IC controller/driver | SSD1306 compatible | |
| Viewing range (height) | 5.5 mm | |
| Width | 29.1 mm | |
| Background color | white | |
| Viewing area (width) | 23.1 mm | |
| Display | 96 x 16 character | |
| max. operating temperature | 80 °C | |
| Thickness | 1.45 mm | |
| Technology | OLED | |
| MPU interface | I²C | |
| type of backlight | OLED | |
| Height | 9.2 mm |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85312095 |
Compliance
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
