EA W242B-NLW | DISPLAY VISIONS
LCD text display, 2 x 24 character, STN, viewing area: 96 x 18.8 mm, EA W242B-NLW
Order No.: 73S2423
MPN:
EA W242B-NLW
Unit Price (€ / pc.)
26.3585 € *
Standard delivery time from the manufacturer is: 1 Week

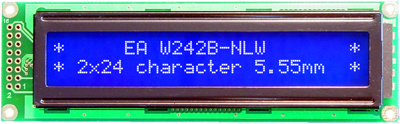

Text display, EA W242B-NLW, DISPLAY VISIONS
2-line display with 24 characters and 5.55 mm font in blue and white. White LED backlighting. Incl. controller HD44780 / ST7066 compatible for 4-/ and 8-bit interface. Connection: soldering eye row.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 36 mm | |
| min. operating temperature | 0 °C | |
| max. operating temperature | 50 °C | |
| Viewing area (width) | 96 mm | |
| Display | 2 x 24 character | |
| type of backlight | LED - white | |
| IC controller/driver | HD44780 compatible | |
| MPU interface | 4-Bit, 8-Bit | |
| Thickness | 13.6 mm | |
| Width | 118 mm | |
| Character height | 5.55 mm | |
| Viewing range (height) | 18.8 mm | |
| Technology | STN | |
| Background color | blue |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85312095 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
