EA EDIP320B-8LWT | DISPLAY VISIONS

Graphic display, STN, viewing area: 121 x 92.6 mm, EA EDIP320B-8LWT

Order No.: 73S2284
MPN:
EA EDIP320B-8LWT
EA EDIP320B-8LWT DISPLAY VISIONS LED-Modules

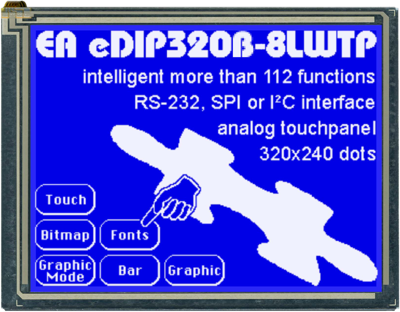

Image may differ
Unit Price (€ / pc.)
374.3145 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
374.31 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
374.3145 €

Intelligent graphic display, EA EDIP320B-8LWT, DISPLAY VISIONS

Intelligent graphic display STN blue/white with 320 x 240 dots resolution (1/4-VGA). Integrated touch panel (analogue) and Interface RS-232, SPI and I²C bus. With pins (1/10" pitch) for direct soldering into a pcb or standard socket. Character sets and graphic functions are already built-in. With EEPROM for individual pictures, text and complete screen pages. Mounting is done via integrated pin header. As an accessory there is a mounting bezel made of black anodized aluminium available.

Technical specifications
min. operating temperature -20 °C
Viewing range (height) 92.6 mm
Width 137.8 mm
Background color blue
Viewing area (width) 121 mm
max. operating temperature 70 °C
Thickness 11.6 mm
Technology STN
MPU interface RS-232, I²C, SPI
type of backlight LED - white
Height 105.3 mm
Logistics
Country of origin CN
Customs tariff number 85312095
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
