LCD text display, 4 x 16 character, STN, viewing area: 37.4 x 18 mm, EA DOGS164B-A

Order No.: 73S2268
MPN:
EA DOGS164B-A
EA DOGS164B-A DISPLAY VISIONS LED-Modules
Image may differ
Unit Price (€ / pc.)
12.3879 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
12.39 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
12.3879 €

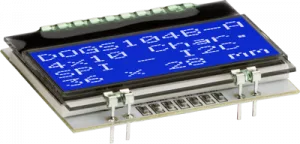

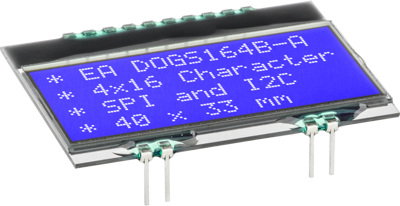

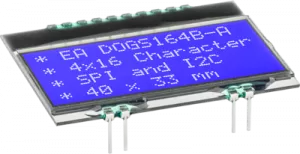

Character LCD, EA DOGS164B-A, DISPLAY VISIONS

4-line display, member of DOG series. 16 character each line, blue-white. Character size 2.6 mm. Can be changed by software to 2 x 16 character with double height or 2 lines with small font and 1 line with large font size. Flat COG design. Single supply 3.3V. With pins for direct pcb mounting and soldering – alternatively it can be put into sockets. This display requires an additional backlight (please order separately; we suggest the white one EA LED40 x 33-ERW). SPI and I²C bus interface.

Technical specifications
min. operating temperature -20 °C
IC controller/driver SSD1803A compatible
Viewing range (height) 18 mm
Width 40 mm
Background color blue
Viewing area (width) 37.4 mm
Character height 3.2 mm
Display 4 x 16 character
max. operating temperature 70 °C
Thickness 4.6 mm
Technology STN
MPU interface I²C, SPI
type of backlight required
Height 33 mm
Logistics
Country of origin CN
Customs tariff number 85312095
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
