DEM 480272L TMH-PW-N | Display Elektronik
TFT display 4.3"/10.9 cm, 480 x 272, DEM 480272L TMH-PW-N
Order No.: 71S991
EAN: 4099879007100
MPN:
DEM 480272L TMH-PW-N
Unit Price (€ / pc.)
32.6060 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
32.61 € *
Price list
Quantity
Price per unit*
1 pcs.
32.6060 €
5 pcs.
30.9162 €
10 pcs.
29.3930 €
25 pcs.
28.0126 €
100 pcs.
27.1677 €
*incl. VAT plus shipping costs
**Subject to prior sale

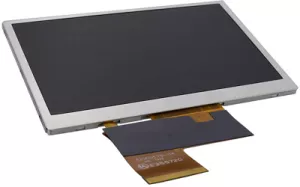

TFT module, DEM 480272L TMH-PW-N, Display Electronic

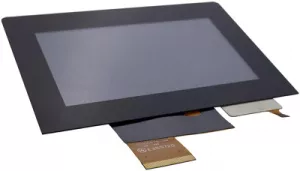

DEM 480272L TMH-PW-N (C-TOUCH) is a transmissive type color active matrix TFT (Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device.
Features
- Transmissive and back-light with 9 LEDs are available
- Twisted Nematic mode
- Digital RGB 24 bit/18 bit Interface
Technical specifications
| Resolution | 480 x 272 | |
| Version | TFT display | |
| Viewing area (width) | 95.04 mm | |
| Viewing range (height) | 53.86 mm | |
| screen diagonal | 4.3"/10.9 cm | |
| Shell size | 105.5 x 67.2 x 2.9 mm | |
| max. operating temperature | 70 °C | |
| min. operating temperature | -20 °C | |
| Technology | TN - transmissive |
Download
Logistics
| Customs tariff number | 85312095 |
| MSL | MSL 1 |
| Original Packaging | Tray with 60 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
