DEM 320240G1 TMH-PW-N (C-TOUCH) | Display Elektronik

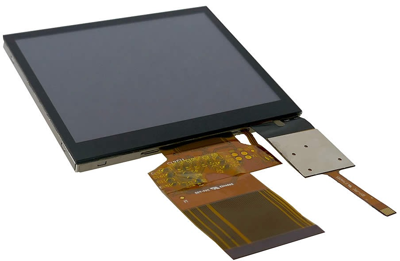

TFT display with touch function 3.5"/8.9 cm, 320 x 240, DEM 320240G1 TMH-PW-N (C-TOUCH)
Order No.: 71S975
EAN: 4099879007049
MPN:
DEM 320240G1 TMH-PW-N (C-TOUCH)
Unit Price (€ / pc.)
50.5988 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
50.60 € *
Price list
Quantity
Price per unit*
1 pcs.
50.5988 €
5 pcs.
47.5643 €
15 pcs.
45.7317 €
50 pcs.
43.7206 €
*incl. VAT plus shipping costs
**Subject to prior sale
TFT-Display, DEM 320240G1 TMH-PW-N (C-TOUCH), Display Elektronik
This 3.5 TFT is a transmissive type color active matrix TFT (Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device.
Features
- Size: 3.5 Inch.
- Module size: 76.90 x 63.90 x 4.60.
- Display color: 16.7 million.
- View direction: 12 O'clock.
Technical specifications
| Resolution | 320 x 240 | |
| Version | TFT display with touch function | |
| Viewing area (width) | 70.08 mm | |
| Viewing range (height) | 52.56 mm | |
| screen diagonal | 3.5"/8.9 cm | |
| Shell size | 76.9 x 63.9 x 4.6 mm | |
| max. operating temperature | 70 °C | |
| min. operating temperature | -20 °C | |
| Technology | TN - transmissive |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85249100 |
| MSL | MSL 1 |
| Original Packaging | Tray with 320 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
