DEP 128032A-Y | Display Elektronik

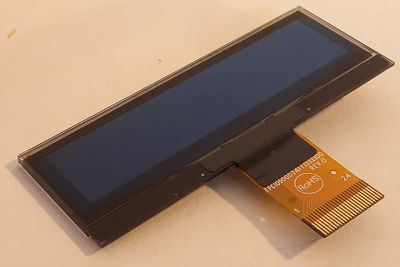

OLED display, 128 x 32 dots, 62 x 24 x 2.35 mm, yellow, Display Elektronik DEP 128032A-Y
Order No.: 71S905
EAN: 4099879007490
MPN:
DEP 128032A-Y
Unit Price (€ / pc.)
19.992 € *
Standard delivery time from the manufacturer is: 1 Week
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Display | 128 x 32 dots | |
| Shell size | 62 x 24 x 2.35 mm | |
| Technology | OLED | |
| IC controller/driver | SSD1305 compatible | |
| MPU interface | 8-Bit-MCU | |
| Light intensity typ. | 100 cd | |
| Viewing area (width) | 55.02 mm | |
| Viewing range (height) | 13.1 mm | |
| type of backlight | OLED | |
| Background color | yellow | |
| Width | 62 mm | |
| Height | 24 mm | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 80 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Tray with 18 pieces |
| MSL | MSL 1 |
| Customs tariff number | 85249200 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
