DEP 096016B-W | Display Elektronik

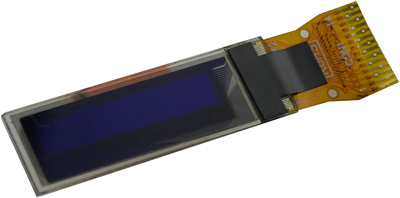

Name: OLED display, 96 x 16 dots, 26.3 x 8 x 1.26 mm, white, Display Elektronik DEP 096016B-W
Brand: Display Elektronik
SKU: 73S0209
Availability: InStock

OLED display, 96 x 16 dots, 26.3 x 8 x 1.26 mm, white, Display Elektronik DEP 096016B-W

Order No.: 73S0209

EAN: 4099891977740

MPN:

DEP 096016B-W

Image may differ

Key Specification:

Display 96 x 16 dots

Shell size 26.3 x 8 x 1.26 mm

Technology OLED

IC controller/driver SSD1306BZ compatible

Show 3 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

4.2126 € *

Standard delivery time from the manufacturer is: 1 Week

Total Price:

3,791.34 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

OLED Module, DEP 096016B-W, Display Elektronik

Features

Active Area: 17.26 × 3.18mm
Display Mode: Passive Matrix
Display Color: OLED, White

Technical specifications

Filter	Property	Value
	type of backlight	OLED
	MPU interface	SPI
	Lifetime	20.000 hours
	Width	26.3 mm
	Display	96 x 16 dots
	min. operating temperature	-30 °C
	Shell size	26.3 x 8 x 1.26 mm
	Viewing range (height)	3.18 mm
	Viewing area (width)	17.26 mm
	Light intensity min.	100 cd
	max. operating temperature	70 °C
	Technology	OLED
	Background color	white
	Thickness	1.26 mm
	Light intensity typ.	120 cd
	IC controller/driver	SSD1306BZ compatible
	Height	8 mm
