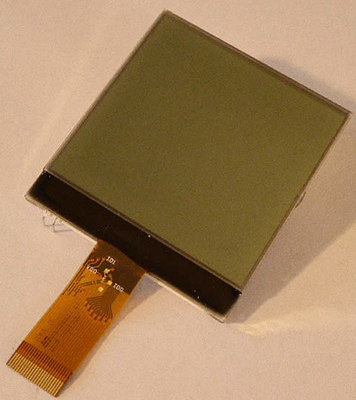

DEM 128128C FGH-PW | Display Elektronik
Graphic mono LCD display, 128 x 128 character, FSTN, viewing area: 44 x 40.5 mm, DEM 128128C FGH-PW
Order No.: 71S814
EAN: 4099879004932
MPN:
DEM 128128C FGH-PW
Unit Price (€ / pc.)
13.9468 € *
Standard delivery time from the manufacturer is: 1 Week
LCD module, DEM 128128C FGH-PW, Display Elektronik
FSTN Transflective Positive.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Viewing area (width) | 44 mm | |
| max. operating temperature | 70 °C | |
| min. operating temperature | -20 °C | |
| Height | 52.8 mm | |
| Technology | FSTN | |
| IC controller/driver | UC1617 | |
| MPU interface | 8-Bit-MCU | |
| Width | 48 mm | |
| Display | 128 x 128 character | |
| Background color | white | |
| Image | positive | |
| Viewing range (height) | 40.5 mm | |
| type of backlight | LED |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85249100 |
| MSL | MSL 1 |
| Original Packaging | Tray with 144 pieces |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
