ZMM 22 | Diotec

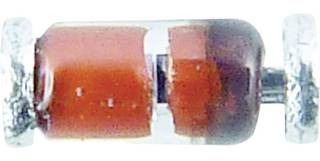

Silicon planar zener diode, 22 V, 500 mW, SOD-80C, ZMM 22
Unit Price (€ / pc.)
0.0214 € *
Available in 4 Days: 30,000 pcs. - if ordered today
Zener diodes, 500 mW, series ZMM.
Power losses: 500 mW. Package: Mini-MELF.
Technical attributes (type, Zener voltage, package): ZMM22, 500 mW, 22 V
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Power loss | 500 mW | |
| Junction temperature (max.) | 175 °C | |
| Enclosure | SOD-80C | |
| Junction temperature (min.) | -50 °C | |
| diameter | 1.45 mm | |
| Number of diodes | 1 | |
| min. operating temperature | -50 °C | |
| Length | 3.5 mm | |
| Assembly | SMD | |
| Version | silicon planar zener diode | |
| Zener voltage | 22 V | |
| max. operating temperature | 175 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 1 piece |
| Customs tariff number | 85411000 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Substance description | Diboron trioxide |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
