1N5383BGRL | Diotec

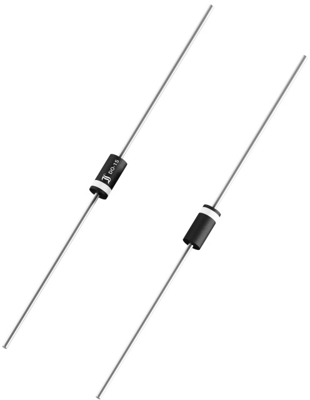

Surface diffused zener diode, 150 V, 5 W, DO-201, 1N5383BGRL
Active
Total price
(
0.3689 €
* / pcs.)
3.69 €
Available: 83 pcs.
Quantity
Price per unit*
10 pcs.
0.3689 €
50 pcs.
0.2892 €
250 pcs.
0.2368 €
1000 pcs.
0.2106 €
2000 pcs.
0.1892 €
*incl. VAT plus
shipping costs
Please send price/quantity requests to info@buerklin.com
Description
Product by Diotec at Bürklin Elektronik
Zener diodes, 5.0 W, series 1N.
Power losses: 5.0 W. Package: CB417.
Technical attributes (type, Zener voltage, manufacturer): 1N5383B, 100 V, Diotec
Technical specifications
| Number of diodes | 1 | |
| Version | Surface diffused zener diode | |
| diameter | 0.45 mm | |
| Enclosure | DO-201 | |
| Length | 7.5 mm | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -50 °C | |
| Assembly | THT | |
| Junction temperature (max.) | 150 °C | |
| Junction temperature (min.) | -50 °C | |
| Power loss | 5 W | |
| Zener voltage | 150 V |
Logistics
| Country of origin | CN |
| Customs tariff number | 85411000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
