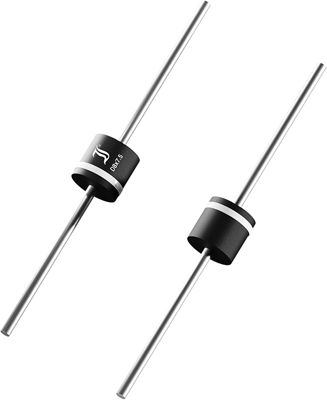

Fast Recovery Rectifier Diode, MR826, Diotec
Features
- High forward surge current
- Compliant to RoHS
Applications
- Rectification of medium frequencies Snubber or Bootstrap diodes
- Commercial / Industrial grade
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Junction temperature (max.) | 150 °C | |
| Assembly | axial | |
| max. operating temperature | 175 °C | |
| Version | rectifier diode | |
| Number of diodes | 1 | |
| Forward Current | 5 A | |
| Enclosure | P600 | |
| Voltage V RRM (peak reverse voltage) | 600 V | |
| min. operating temperature | -50 °C | |
| Surge blocking voltage V RMS | 600 V | |
| Junction temperature (min.) | -50 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Ammopack with 5 pieces |
| Customs tariff number | 85411000 |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| Substance description | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol, lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
