HV5 | Diotec

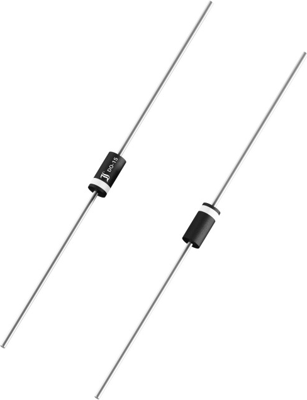

High voltage rectifier diode, 5000 V, 0.2 A, DO-15, HV5
Unit Price (€ / pc.)
0.3213 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
0.32 € *
Price list
Quantity
Price per unit*
1 pcs.
0.3213 €
10 pcs.
0.3094 €
25 pcs.
0.2975 €
100 pcs.
0.2832 €
250 pcs.
0.2535 €
*incl. VAT plus shipping costs
Subject to prior sale
HV rectifier diodes, type Diotec HV.
fast reverse recovery, large air gaps and creepage distances, for HV rectification with mid-range frequencies. Package material: UL 94 V-0. Dimensions: 6.3 x 3.0 mm. Junction temperature: - 50 to +150 °C.
Technical attributes (type, cyclic peak reverse voltage, limiting value of mean on-state current, cyclic peak current): HV5, 5000 V, 200 mA, 5.0 A
Technical specifications
| Junction temperature (max.) | 150 °C | |
| Enclosure | DO-15 | |
| Surge blocking voltage V RMS | 5000 V | |
| Junction temperature (min.) | -50 °C | |
| max. operating temperature | 150 °C | |
| Forward Current | 0.2 A | |
| Assembly | THT | |
| min. operating temperature | -50 °C | |
| Voltage V RRM (peak reverse voltage) | 5000 V | |
| Version | fast recovery diode |
Download
Logistics
| Customs tariff number | 85411000 |
| Original Packaging | Reel with 1 piece |
| Country of origin | CN |
| MSL | MSL 1 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
