HV3 | Diotec

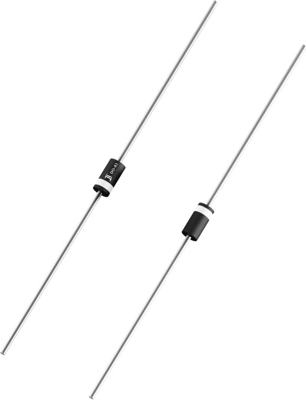

High voltage rectifier diode, 3000 V, 0.2 A, DO-41, HV3
Unit Price (€ / pc.)
0.3213 € *
Available in 4 Days: 15,000 pcs. - if ordered today
Total Price:
3.21 € *
Price list
Quantity
Price per unit*
10 pcs.
0.3213 €
100 pcs.
0.2011 €
250 pcs.
0.1202 €
1000 pcs.
0.0802 €
5000 pcs.
0.0641 €
*incl. VAT plus shipping costs
Subject to prior sale
HV rectifier diodes, type Diotec HV.
Fast reverse recovery, large air gaps and creepage distances, for HV rectification with mid-range frequencies; Package material: UL 94 V-0. Dimensions: 5.1 x 2.6 mm. Junction temperature: –50 to +150 °C,.
Technical attributes (type, cyclic peak reverse voltage, limiting value of mean on-state current, cyclic peak current): HV3, 3000 V, 200 mA, 5.0 A
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Forward Current | 0.2 A | |
| max. operating temperature | 150 °C | |
| Assembly | THT | |
| min. operating temperature | -50 °C | |
| Voltage V RRM (peak reverse voltage) | 3000 V | |
| Surge blocking voltage V RMS | 3000 V | |
| Enclosure | DO-41 | |
| Junction temperature (max.) | 150 °C | |
| Junction temperature (min.) | -50 °C | |
| Version | fast recovery diode |
Download
Logistics
| Property | Value |
|---|---|
| MSL | MSL 1 |
| Customs tariff number | 85411000 |
| Country of origin | CN |
| Original Packaging | Ammopack with 5,000 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
