ER1M-AQ | Diotec

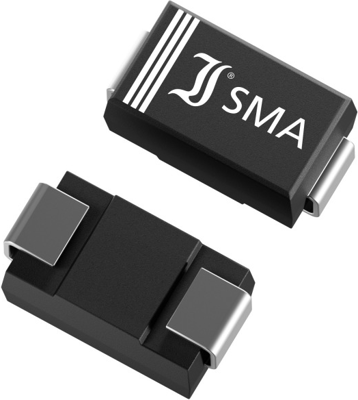

Superfast rectifier diode, 1000 V, 1 A, SMA, ER1M-AQ
Unit Price (€ / pc.)
   0.2880 €  *
   Standard delivery time from the manufacturer is: 8 Weeks
 Total Price:
  2.88 € *
  Price list
 Quantity
 Price per unit*
 10 pcs.
 0.2880 €
 100 pcs.
 0.1797 €
 250 pcs.
 0.1078 €
 1000 pcs.
 0.0719 €
 7500 pcs.
 0.0575 €
  *incl. VAT plus shipping costs
  Subject to prior sale
 Superfast SMD Rectifier Diode, ER1M-AQ, Diotec
Superfast Recovery SMD Rectifier Diode
Features
- Very low reverse recovery time
- Low forward voltage drop
- Compliant to RoHS
Applications
- Rectification of higher frequencies
- High speed switching
- Commercial / industrial grade
 Technical specifications

 | Filter | Property | Value |
|---|---|---|
| Junction temperature (max.) | 150 °C | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -50 °C | |
| Assembly | SMD | |
| Number of diodes | 1 | |
| Junction temperature (min.) | -50 °C | |
| Surge blocking voltage V RMS | 1000 V | |
| Forward Current | 1 A | |
| Rated blocking voltage | 800 V | |
| Version | superfast rectifier diode | |
| Enclosure | SMA | |
| Voltage V RRM (peak reverse voltage) | 1000 V |
 Download
  Logistics

 | Property | Value |
|---|---|
| Customs tariff number | 85411000 |
| MSL | MSL 1 |
| Original Packaging | Reel with 7,500 pieces |
| Country of origin | CN |
 Compliance

 | Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
