EAL1G | Diotec
Superfast rectifier diode, 450 V, 1 A, DO-213AA, EAL1G
Unit Price (€ / pc.)
0.0695 € *
Standard delivery time from the manufacturer is: 4 Weeks
Super-fast SMD rectifier diodes, type Diotec EAL1.

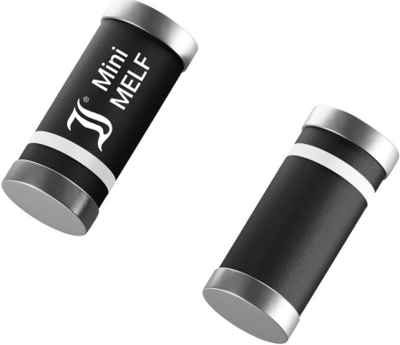

With Controlled Avalanche, for the rectification of mid-range frequencies; Package material: UL 94 V-0 classified. Junction temperature: –50 to +175 °C. Package: DO213AA (MiniMelf).
Technical attributes (type, periodic peak reverse voltage, reverse voltage, limiting value of mean on-state current): EAL1G, 400 V, 450 V, 1.0 A
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Junction temperature (max.) | 175 °C | |
| Assembly | SMD | |
| max. operating temperature | 175 °C | |
| Version | superfast diode | |
| Forward Current | 1 A | |
| Enclosure | DO-213AA | |
| Voltage V RRM (peak reverse voltage) | 400 V | |
| min. operating temperature | -50 °C | |
| Surge blocking voltage V RMS | 450 V | |
| Junction temperature (min.) | -50 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | SI |
| Original Packaging | Reel with 2,500 pieces |
| Customs tariff number | 85411000 |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| Substance description | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol, lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
