S125 | Diotec
Diotec SMD bridge rectifier, 125 V, 800 mA, mini DIP, S125
Unit Price (€ / pc.)
0.3046 € *
Available: 970 pcs.
Leadtime: 6 Weeks **
Total Price:
6.09 € *
Price list
Quantity
Price per unit*
20 pcs.
0.3046 €
100 pcs.
0.2261 €
500 pcs.
0.1785 €
2000 pcs.
0.1476 €
4000 pcs.
0.1321 €
*incl. VAT plus shipping costs
**Subject to prior sale

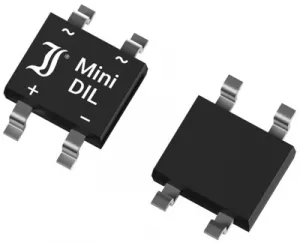

Diode bridge rectifier, S125, DIOTEC
Features
- Four diodes in bridge configuration
- Slim profile package
- Low forward voltage drop
- UL recognized
- Compliant to RoHS, REACH and conflict minerals
Applications
- 50/60 Hz mains rectification
- Power supplies
- Commercial grade
Technical specifications
| Version | 1-phase | |
| Input voltage | 125 V | |
| Enclosure | mini DIP | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -50 °C | |
| Assembly | SMD | |
| Rated current | 800 mA | |
| Voltage V RRM (peak reverse voltage) | 250 V |
Download
Logistics
| Country of origin | SI |
| Customs tariff number | 85411000 |
| Original Packaging | Reel with 5,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
