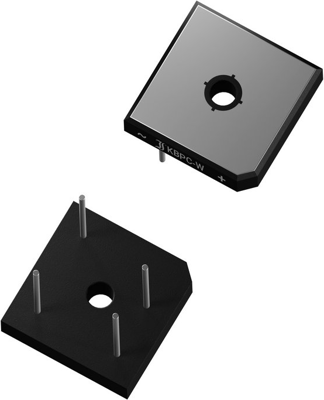

KBPC10/15/2506WP | Diotec
Diotec bridge rectifier, 420 V, 600 V (RRM), 25 A, KBPC-WP, KBPC10/15/2506WP
Unit Price (€ / pc.)
1.2614 € *
Available in 4 Days: 1,600 pcs. - if ordered today
Single Phase Diode Bridge Rectifier, KBPC10/15/2506WP, Diotec
Features
- Four diodes in bridge configuration
- UL recognized
- Plastic case with isolated aluminium baseplate
- Compliant to RoHS
Applications
- 50/60 Hz Mains Rectification
- Power Supplies
- Commercial / industrial grade
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | 1-phase | |
| Assembly | THT | |
| Enclosure | KBPC-WP | |
| Input voltage | 420 V | |
| Rated current | 25 A | |
| Voltage V RRM (peak reverse voltage) | 600 V | |
| min. operating temperature | -50 °C | |
| max. operating temperature | 150 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bulk with 160 pieces |
| Country of origin | IN |
| Customs tariff number | 85411000 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
