B250D | Diotec

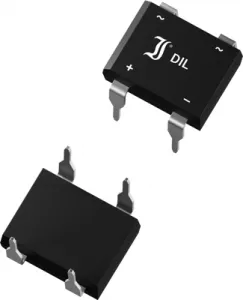

Diotec bridge rectifier, 250 V, 1 A, DIL, B250D
Unit Price (€ / pc.)
0.4522 € *
Available: 284 pcs.
Leadtime: 5 Weeks **
Total Price:
4.52 € *
Price list
Quantity
Price per unit*
10 pcs.
0.4522 €
50 pcs.
0.3689 €
250 pcs.
0.3070 €
1000 pcs.
0.2654 €
2500 pcs.
0.2344 €
*incl. VAT plus shipping costs
**Subject to prior sale
Diode bridge rectifier, B250D, DIOTEC
Features
- Four diodes in bridge configuration
- UL recognized
- Compliant to RoHS, REACH and conflict minerals
Applications
- 50/60 Hz mains rectification
- Power supplies
- Commercial grade
Technical specifications
| Version | 1-phase | |
| Input voltage | 250 V | |
| Enclosure | DIL | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -50 °C | |
| Assembly | THT | |
| Rated current | 1 A | |
| Voltage V RRM (peak reverse voltage) | 600 V |
Download
Logistics
| Country of origin | SI |
| Customs tariff number | 85411000 |
| Original Packaging | Bar with 50 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
