BAW56W | Diotec Semiconductor

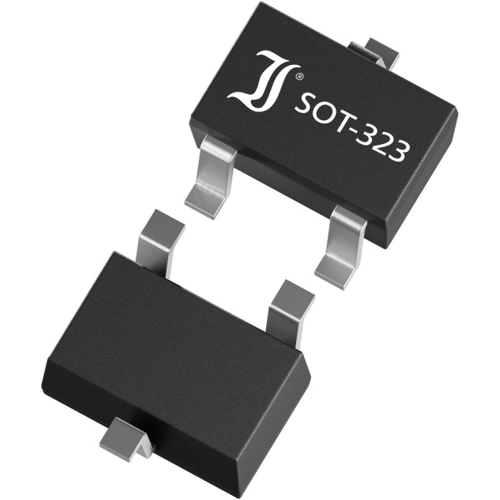

Small signal diode, 75 V, SOT-323, Diotec Semiconductor BAW56W
Order No.: 70S0870
MPN:
BAW56W
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.1559 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
1.56 € *
Price list
Quantity
Price per unit*
10 pcs.
0.1559 €
100 pcs.
0.0976 €
250 pcs.
0.0583 €
1000 pcs.
0.0393 €
3000 pcs.
0.0309 €
*incl. VAT plus shipping costs
Subject to prior sale
SMD Small Signal Diode, BAW56W, Diotec
Features
- Very high switching speed
- Low junction capacitance
- Low leakage current
Applications
- Signal processing
- High-speed Switching
- Rectifying
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | small signal diode | |
| Enclosure | SOT-323 | |
| Rated blocking voltage | 75 V | |
| Number of diodes | 2 | |
| Assembly | SMD | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 150 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| MSL | MSL 1 |
| Customs tariff number | 85411000 |
| Original Packaging | Reel with 3,000 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
