BAW56 | Diotec Semiconductor

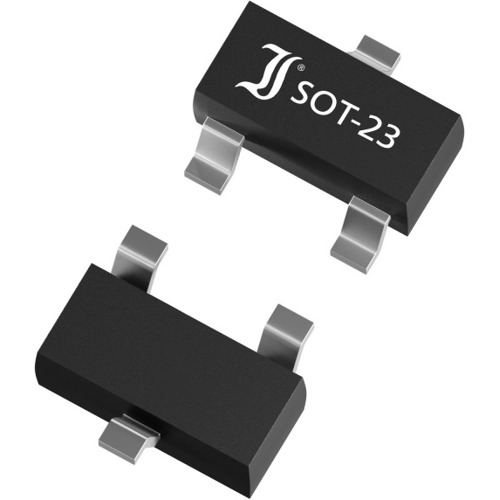

Switching Diode, 0.35 W, TO-236, SOT-23, Diotec Semiconductor BAW56
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.0714 € *
Available: 9,000 pcs.
Total Price:
0.71 € *
Price list
Quantity
Price per unit*
10 pcs.
0.0714 €
100 pcs.
0.0452 €
250 pcs.
0.0274 €
1000 pcs.
0.0178 €
3000 pcs.
0.0143 €
*incl. VAT plus shipping costs
Subject to prior sale
SMD Small Signal Diode, BAW56, Diotec
Features
- Very high switching speed
Applications
- Signal processing
- Rectifying
- High-speed Switching
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | switching Diode | |
| Enclosure | TO-236, SOT-23 | |
| Max. average forward current | 215 mA | |
| Repetitive peak forward current | 300 mA | |
| Power loss | 0.35 W | |
| Peak blocking voltage | 85 V | |
| Reverse recovery time | < 4 ns | |
| Number of diodes | 2 | |
| Assembly | SMD | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 150 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 3,000 pieces |
| MSL | MSL 1 |
| Country of origin | CN |
| Customs tariff number | 85411000 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol |
| Date of RoHS guidelines | 3/31/15 |
