BAV99-AQ | Diotec Semiconductor

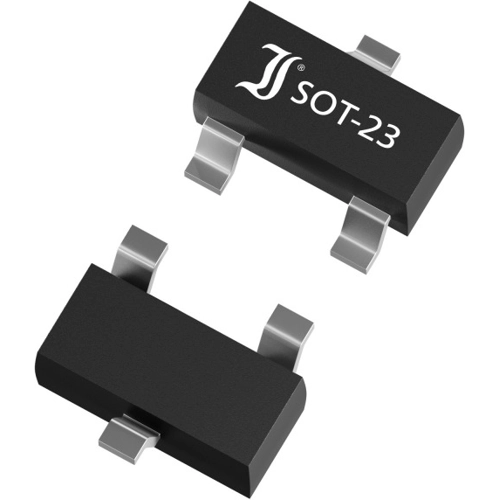

Small signal diode, AEC-Q101 qualified, 0.35 W, 75 V, TO-236, SOT-23, Diotec Semiconductor BAV99-AQ
Order No.: 70S0852
MPN:
BAV99-AQ
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.0881 € *
Available in 4 Days: 21,000 pcs. - if ordered today
Total Price:
0.88 € *
Price list
Quantity
Price per unit*
10 pcs.
0.0881 €
100 pcs.
0.0559 €
250 pcs.
0.0333 €
1000 pcs.
0.0226 €
3000 pcs.
0.0178 €
*incl. VAT plus shipping costs
Subject to prior sale
SMD Small Signal Diode, BAV99-AQ, Diotec
Features
- Very high switching speed
- AEC-Q101 qualified
Applications
- Signal processing
- High-speed switching
- Rectifying
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | small signal diode | |
| Version | AEC-Q101 qualified | |
| Enclosure | TO-236, SOT-23 | |
| Max. average forward current | 215 mA | |
| Repetitive peak forward current | 300 mA | |
| Power loss | 0.35 W | |
| Rated blocking voltage | 75 V | |
| Peak blocking voltage | 85 V | |
| Reverse recovery time | < 4 ns | |
| Number of diodes | 2 | |
| Assembly | SMD | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 150 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85411000 |
| Original Packaging | Reel with 3,000 pieces |
| MSL | MSL 1 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
