BAV23CC | Diotec Semiconductor

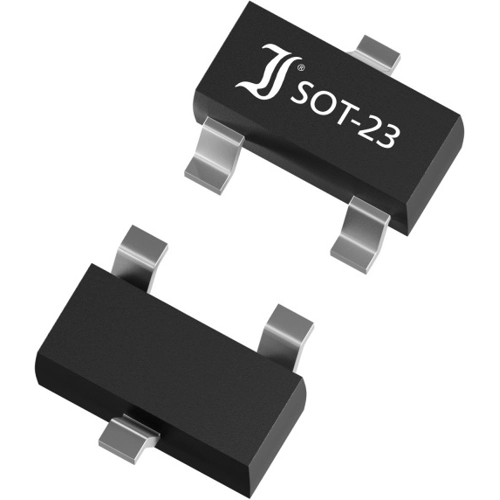

Small signal diode, 200 V, TO-236, SOT-23, Diotec Semiconductor BAV23CC
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.1380 € *
Available in 4 Days: 9,000 pcs. - if ordered today
Total Price:
1.38 € *
Price list
Quantity
Price per unit*
10 pcs.
0.1380 €
100 pcs.
0.0869 €
250 pcs.
0.0524 €
1000 pcs.
0.0345 €
3000 pcs.
0.0274 €
*incl. VAT plus shipping costs
Subject to prior sale
SMD Small Signal Diode, BAV23CC, Diotec
Features
- High reverse voltage
- Superfast Recovery
- Low junction capacity
- Low leakage current
Applications
- Signal processing
- High-speed switching
- Rectifying
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | small signal diode | |
| Enclosure | TO-236, SOT-23 | |
| Max. average forward current | 225 A | |
| Repetitive peak forward current | 625 A | |
| Power loss | 0.35 W | |
| Rated blocking voltage | 200 V | |
| Peak blocking voltage | 250 V | |
| Reverse recovery time | < 50 ns | |
| Number of diodes | 2 | |
| Assembly | SMD | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 150 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 3,000 pieces |
| Customs tariff number | 85411000 |
| Country of origin | CN |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol |
