BAV199W-AQ | Diotec Semiconductor

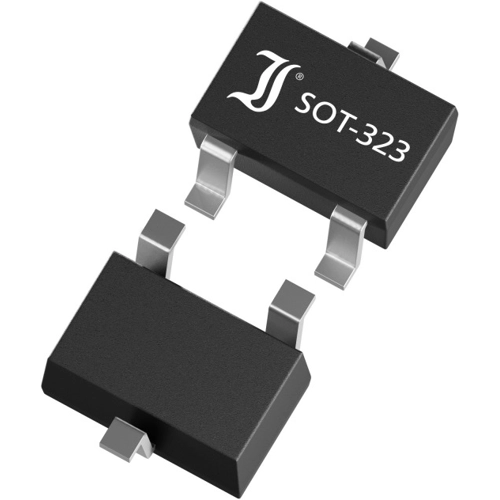

Small signal diode, AEC-Q101 qualified, 0.2 W, 75 V, SOT-323, Diotec Semiconductor BAV199W-AQ
Order No.: 70S0826
MPN:
BAV199W-AQ
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.2451 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
2.45 € *
Price list
Quantity
Price per unit*
10 pcs.
0.2451 €
100 pcs.
0.1535 €
250 pcs.
0.0916 €
1000 pcs.
0.0619 €
3000 pcs.
0.0488 €
*incl. VAT plus shipping costs
Subject to prior sale
SMD Small Signal Diode, BAV199W-AQ, Diotec
Features
- Very high switching speed
- Low junction capacitance
- Low leakage current
- AEC-Q101 qualified
Applications
- Signal processing
- High-speed Switching
- Rectifying
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | small signal diode | |
| Version | AEC-Q101 qualified | |
| Enclosure | SOT-323 | |
| Max. average forward current | 140 mA | |
| Repetitive peak forward current | 300 mA | |
| Power loss | 0.2 W | |
| Rated blocking voltage | 75 V | |
| Peak blocking voltage | 85 V | |
| Reverse recovery time | < 3000 ns | |
| Number of diodes | 2 | |
| Assembly | SMD | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 150 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 3,000 pieces |
| MSL | MSL 1 |
| Country of origin | CN |
| Customs tariff number | 85411000 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
