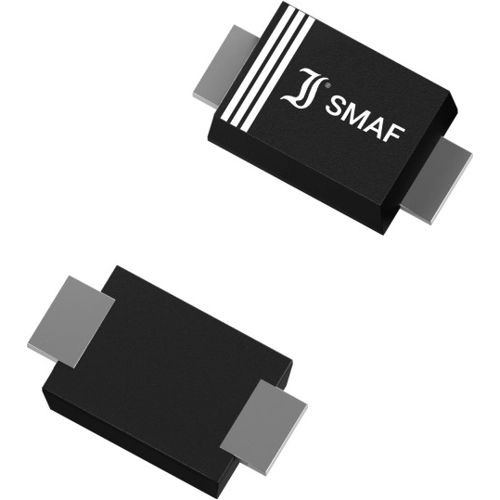

SKT36-AQ | Diotec Semiconductor
Schottky diode, 60 V (RRM), 3 A, DO-221AC, SMAF, SKT36-AQ
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.0655 € *
Standard delivery time from the manufacturer is: 8 Weeks
SMD Schottky Diode, SKT36-AQ, Diotec
SMD Schottky barrier rectifier diode
Features
- Low forward voltage drop
- AEC-Q101 qualified
- Low profile package
Applications
- Output Rectification in DC/DC Converters
- Polarity Protection
- Free-wheeling diodes
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | schottky barrier rectifier diode | |
| Version | AEC-Q101 qualified | |
| Enclosure | DO-221AC, SMAF | |
| Voltage V RRM (peak reverse voltage) | 60 V | |
| Surge blocking voltage V RMS | 60 V | |
| Forward Current | 3 A | |
| Number of diodes | 1 | |
| Junction temperature (min.) | -50 °C | |
| Junction temperature (max.) | 150 °C | |
| Capacity | 200 pF | |
| Assembly | SMD | |
| min. operating temperature | -50 °C | |
| max. operating temperature | 150 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85411000 |
| MSL | MSL 1 |
| Original Packaging | Reel with 5,000 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
