PPS1060-AQ | Diotec Semiconductor

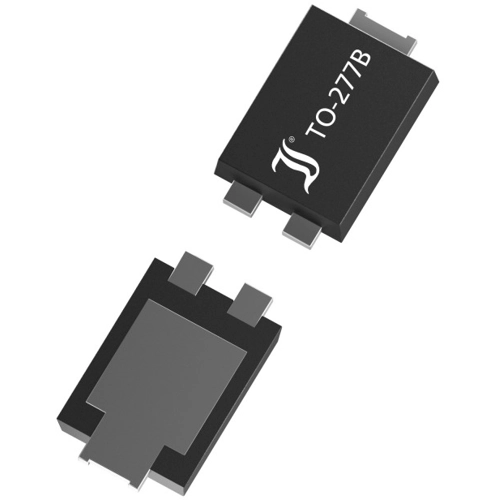

Schottky diode, 60 V (RRM), TO-277B, PowerSMD, PPS1060-AQ
Order No.: 10S9398
MPN:
PPS1060-AQ
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.1896 € *
Standard delivery time from the manufacturer is: 12 Weeks
SMD Schottky Barrier Rectifier Diode, PPS1060-AQ, Diotec Semiconductor
Features
- Low forward voltage drop
- High power dissipation
- Low profile package
Applications
- Output Rectification in DC/DC
- Converters and Offline Power Supplies
- Solar Bypass Diodes
- Polarity Protection
- Free-wheeling diodes
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | schottky diode | |
| Version | AEC-Q101 qualified | |
| Enclosure | TO-277B, PowerSMD | |
| Voltage V RRM (peak reverse voltage) | 60 V | |
| Surge blocking voltage V RMS | 60 V | |
| Number of diodes | 1 | |
| Junction temperature (min.) | -50 °C | |
| Junction temperature (max.) | 150 °C | |
| Capacity | 500 pF | |
| Assembly | SMD | |
| min. operating temperature | -50 °C | |
| max. operating temperature | 150 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85411000 |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
