HV3 | Diotec Semiconductor

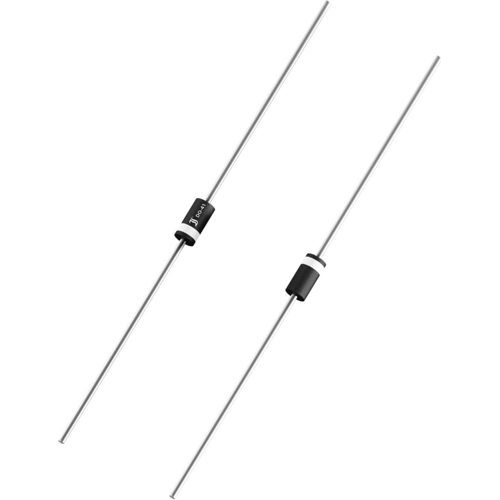

High voltage rectifier diode, 3000 V, 0.2 A, DO-41, HV3
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.2880 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
2.88 € *
Price list
Quantity
Price per unit*
10 pcs.
0.2880 €
100 pcs.
0.1797 €
250 pcs.
0.1083 €
1000 pcs.
0.0714 €
5000 pcs.
0.0571 €
*incl. VAT plus shipping costs
Subject to prior sale
Fast Recovery High Voltage Rectifier Diode
Features
- High creepage and clearance
Applications
- High voltage rectification at medium frequencie
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | high voltage rectifier diode | |
| Enclosure | DO-41 | |
| Voltage V RRM (peak reverse voltage) | 3000 V | |
| Surge blocking voltage V RMS | 3000 V | |
| Forward Current | 0.2 A | |
| Number of diodes | 1 | |
| Assembly | THT | |
| Junction temperature (min.) | -50 °C | |
| Junction temperature (max.) | 150 °C | |
| min. operating temperature | -50 °C | |
| max. operating temperature | 150 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Ammopack with 5,000 pieces |
| Country of origin | CN |
| MSL | MSL 1 |
| Customs tariff number | 85411000 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
