BY550-100 | Diotec Semiconductor

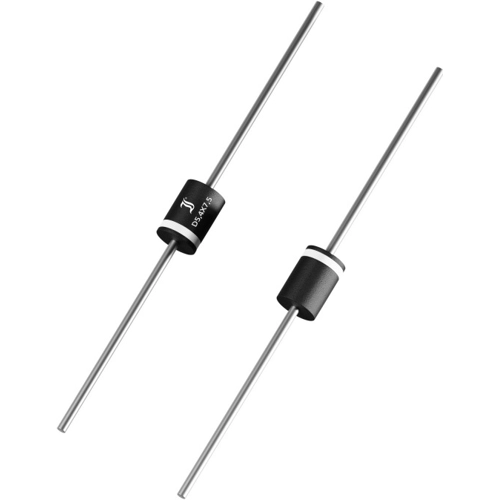

Rectifier diode, 100 V, 5 A, 5.4 x 7.5, with standard locking delay, BY550-100
Unit Price (€ / pc.)
0.1464 € *
Available: 917 pcs.
Available in 4 Days: 33,750 pcs. - if ordered today
Total Price:
1.46 € *
Price list
Quantity
Price per unit*
10 pcs.
0.1464 €
50 pcs.
0.1047 €
250 pcs.
0.0869 €
1000 pcs.
0.0750 €
2500 pcs.
0.0666 €
*incl. VAT plus shipping costs
Subject to prior sale
Standard Recovery Rectifier Diode
Features
- High forward surge current
Applications
- 50/60 Hz Mains Rectification
- Power Supplies
- Polarity Protection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | rectifier diode | |
| Version | with standard locking delay | |
| Enclosure | 5.4 x 7.5 | |
| Voltage V RRM (peak reverse voltage) | 100 V | |
| Surge blocking voltage V RMS | 100 V | |
| Forward Current | 5 A | |
| Number of diodes | 1 | |
| Assembly | THT | |
| Junction temperature (min.) | -50 °C | |
| Junction temperature (max.) | 175 °C | |
| min. operating temperature | -50 °C | |
| max. operating temperature | 175 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Ammopack with 1,250 pieces |
| Country of origin | CN |
| Customs tariff number | 85411000 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
