BAV20 | Diotec Semiconductor

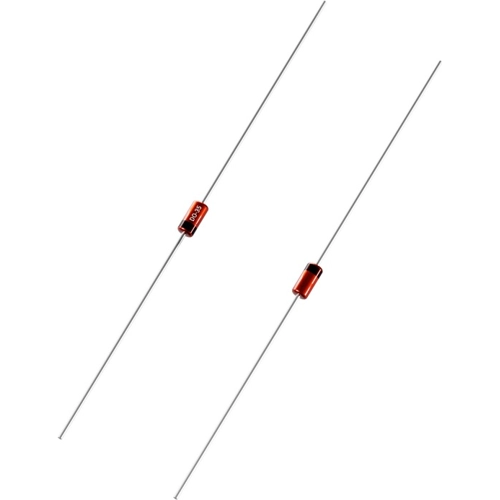

Rectifier diode, 200 V, SOD-27, DO-35, with ultra-fast locking delay, BAV20
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.0785 € *
Available: 1,443 pcs.
Total Price:
0.79 € *
Price list
Quantity
Price per unit*
10 pcs.
0.0785 €
100 pcs.
0.0500 €
250 pcs.
0.0298 €
1000 pcs.
0.0202 €
5000 pcs.
0.0155 €
*incl. VAT plus shipping costs
Subject to prior sale
Rectifier diode, BAV20, Diotec
The BAV20 is a superfast recovery rectifier diode
Features
- Low junction capacitance
- Low leakage current
Applications
- Signal processing
- High-speed switching
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | rectifier diode | |
| Version | with ultra-fast locking delay | |
| Enclosure | SOD-27, DO-35 | |
| Voltage V RRM (peak reverse voltage) | 150 V | |
| Surge blocking voltage V RMS | 200 V | |
| Number of diodes | 1 | |
| Assembly | axial | |
| Junction temperature (min.) | -50 °C | |
| Junction temperature (max.) | 200 °C | |
| min. operating temperature | -50 °C | |
| max. operating temperature | 200 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85411000 |
| Original Packaging | Reel with 1 piece |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Diboron trioxide |
| RoHS conform | Yes |
