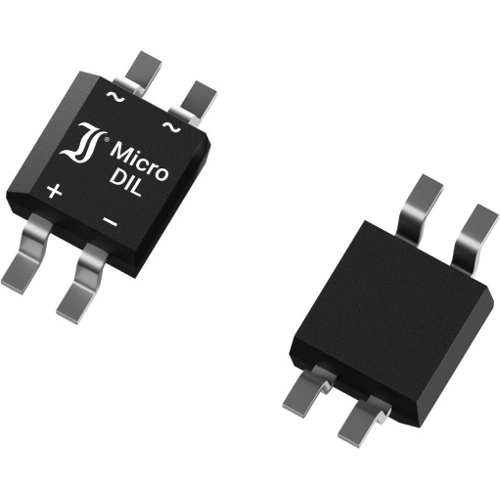

Diotec Semiconductor SMD bridge rectifier, 380 V, 800 V (RRM), 0.5 A, MicroDIL, MYS380
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.3451 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
0.35 € *
Price list
Quantity
Price per unit*
1 pcs.
0.3451 €
100 pcs.
0.2451 €
250 pcs.
0.2106 €
1000 pcs.
0.1404 €
4000 pcs.
0.1119 €
*incl. VAT plus shipping costs
Subject to prior sale
SMD Single Phase Diode Bridge Rectifier, MYS380, Diotec
Features
- Four diodes in bridge configuration
- Industry smallest mains rectifier bridge
- Low junction capacitance
- UL recognized
Applications
- 50/60 Hz mains rectification
- Steering and clamping diodes
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | 1-phase | |
| Assembly | SMD | |
| Enclosure | MicroDIL | |
| Input voltage | 380 V | |
| Rated current | 0.5 A | |
| Voltage V RRM (peak reverse voltage) | 800 V | |
| min. operating temperature | -50 °C | |
| max. operating temperature | 150 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85411000 |
| Original Packaging | Reel with 4,000 pieces |
| MSL | MSL 1 |
| Country of origin | SI |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
