KBPC3514FP | Diotec Semiconductor

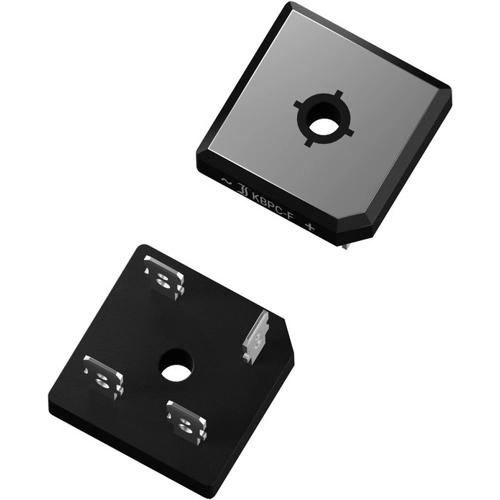

Diotec Semiconductor bridge rectifier, 900 V, 1.4 kV (RRM), 35 A, flat bridge, KBPC3514FP
Unit Price (€ / pc.)
4.1412 € *
Available: 990 pcs.
Available in 4 Days: 240 pcs. - if ordered today
Total Price:
4.14 € *
Price list
Quantity
Price per unit*
1 pcs.
4.1412 €
10 pcs.
3.6771 €
50 pcs.
3.3082 €
100 pcs.
3.0107 €
500 pcs.
2.7608 €
*incl. VAT plus shipping costs
Subject to prior sale
Single Phase Bridge Rectifier, KBPC3514F, DIOTEC
Features
- Four diodes in bridge configuration
- Fast-on terminals
- Plastic case with isolated aluminium baseplate
- UL recognized
Applications
- 50/60 Hz mains rectification
- Power supplies
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | 1-phase | |
| Assembly | screw mounting | |
| Enclosure | flat bridge | |
| Input voltage | 900 V | |
| Rated current | 35 A | |
| Voltage V RRM (peak reverse voltage) | 1.4 kV | |
| min. operating temperature | -50 °C | |
| max. operating temperature | 150 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IN |
| Customs tariff number | 85411000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
